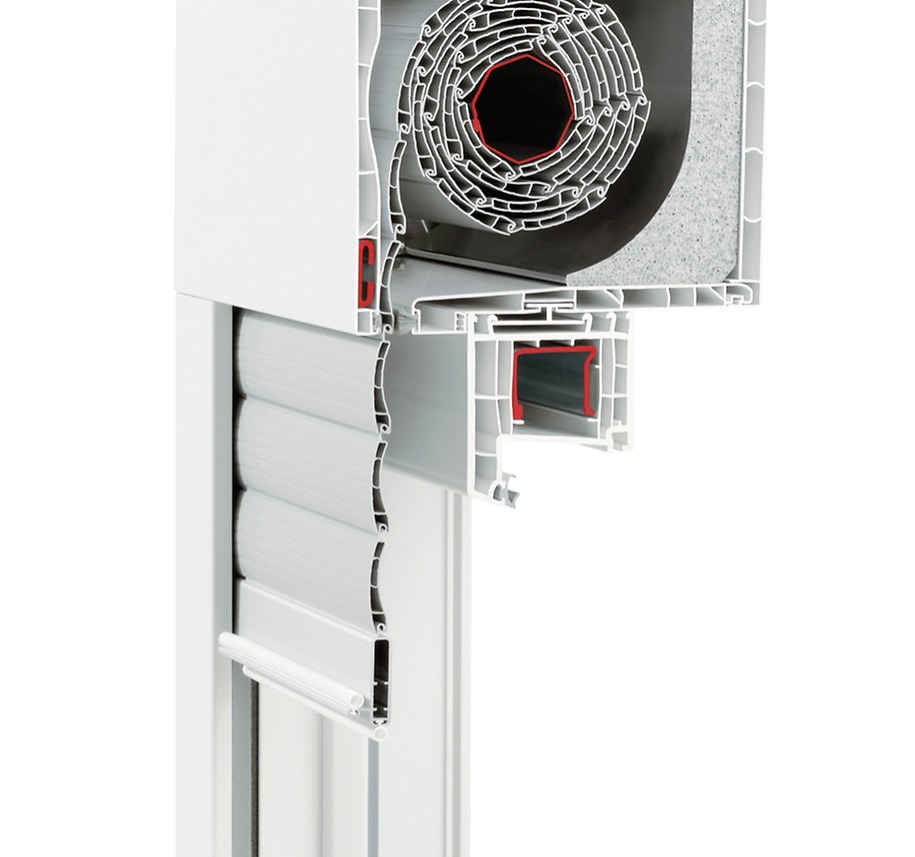

Versatile shutter box for old and new buildings
Whether you are renovating an old building or planning to build a new one: Comfort-Design Plus covers all your sun protection, theft protection and mosquito net needs. Thanks to their compact shape, the three shutter box sizes 155 mm, 195 mm and 195 mm universal are suitable for retrofitting old buildings. 245 mm louver boxes, on the other hand, are preferably suitable for higher window and door elements in new buildings due to their large louver boxes.

Review Product Catalogue

FEATURES

ABOUT SHUTTER

• Compatible with wooden, plastic and aluminum window systems available as standard in the market
• Designed for case profile depths between 58-90 mm
• Thermal insulation: U < 0.85 W/m²K
• Sound insulation: Rw,P= up to 42 dB
• Available in box sizes 155, 195, 195 universal and 245 mm
• Element heights of up to 1.5 m in 155 mm box size
• Element heights of up to 2.7 m in 195, 195 universal and 245 mm box sizes
• Box dimensions 195 universal and 245 mm, optionally with downward opening inspection cover
• Depending on the equipment request, with corded lever or motor

ADVANTAGES

• The right solution for heights up to 2.7 m in new and old buildings
• Integrated mosquito net (in opaque, weather-resistant glass fiber fabric) available for box sizes 195, 195 universal and 245
• Box sizes 195 universal and 245 are optionally available with a downward-opening inspection cover so that they can be plastered both inside and outside
• Curved base profile transfers moisture to the outside
• The built-in lift-off guard increases theft protection.

DESIGN

• Decor foil, coloring with paint or aluminum cover
• Possible to paint in over 170 RAL color shades
